Compact Substation vs Conventional Substation: A Complete Comparison

As electricity demand continues to rise, utilities and industries seek smarter and more efficient power distribution solutions. Traditional substations are reliable but occupy large areas and require long installation times. In contrast, compact substation design offers an innovative approach that combines safety, simplicity, and space efficiency in one enclosure. This article compares compact substations and conventional substations, helping engineers, EPC contractors, and energy developers choose the best power substation for their needs.

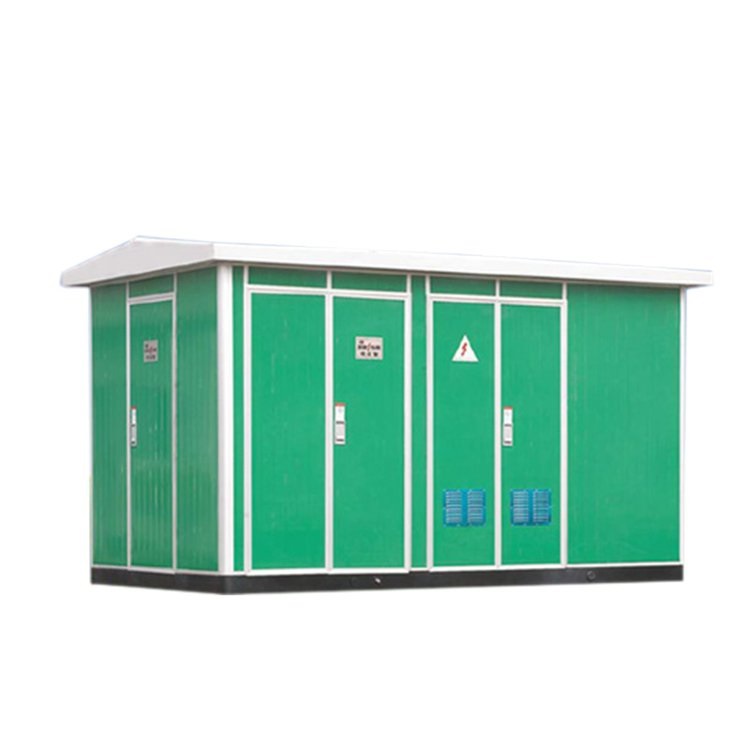

What is a Compact Substation?

A compact substation, also known as a small substation or prefabricated substation, is a factory-assembled unit that integrates the substation transformer, medium-voltage switchgear, and low-voltage distribution cabinet into a single weather-resistant housing.

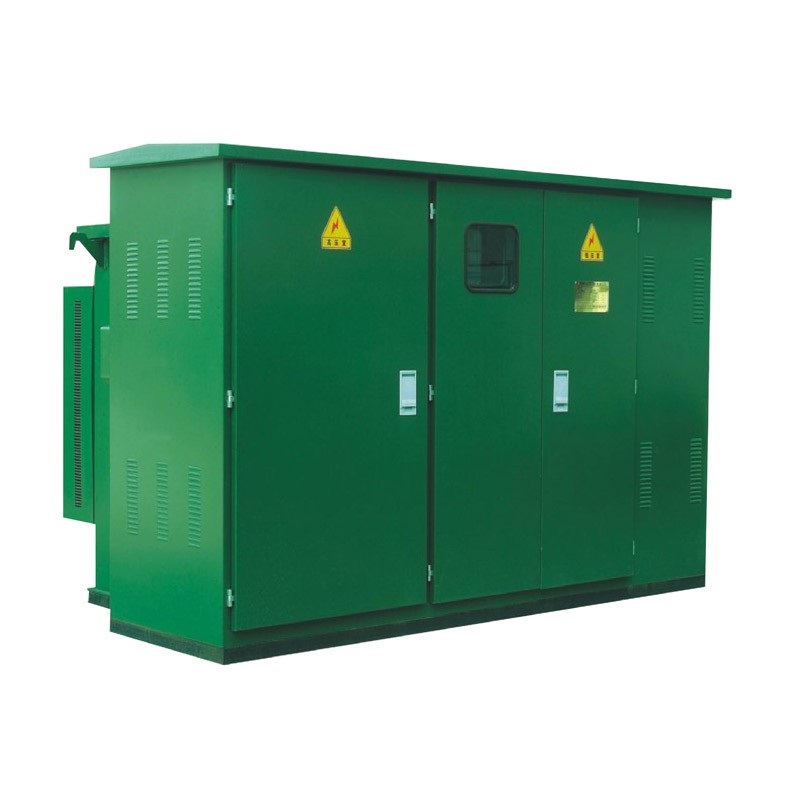

At Byyou, our flagship model ZGS-12/0.4 Compact Substation is designed following the GB17467-2010 “High Voltage / Low Voltage Prefabricated Substation” standard. It provides:

• Small footprint and compact structure
• Easy installation and maintenance
• Low noise and energy loss
• Full protection and anti-theft design
• Reliable performance in challenging environments (–25℃ – 40℃, ≤2000 m altitude)

Such compact substation design is ideal for urban distribution networks, residential zones, solar farms, and industrial plants where space and speed are critical.

What is a Conventional Substation?

A conventional substation is a site-built electric substation where individual substation components like transformer, switchgear, and control panels are installed separately. These are typically used for large-scale or long-term power distribution systems. While offering excellent scalability and customization, conventional substations require significant civil construction, installation time, and land area.

9 Differences Between Compact and Conventional Substations

Design and Structure:

A compact substation follows an integrated, all-in-one design concept. It combines the substation transformer, medium-voltage switchgear, and low-voltage distribution cabinet inside a sealed metal enclosure. This compact substation design ensures safety, reliability, and factory-tested performance before shipment. In contrast, a conventional substation separates these electrical substation parts that require dedicated transformer yards, control rooms, and cable trenches to a larger and more complex layout.

Installation Time:

One of the most significant advantages of a compact substation is its short installation time. Since all substation components are preassembled at the factory, on-site setup can often be completed within one to two weeks. A conventional electric substation, however, demands extensive civil construction, equipment installation, and testing, which can take several months.

Footprint and Space Efficiency:

Compact substations are designed to save space that usually requires 40% to 60% less area compared with traditional ones. This makes them ideal small substations for urban zones, parks, and renewable sites. Conventional substations need larger open areas to accommodate their separated components and ensure safety clearances between high-voltage equipment.

Mobility and Flexibility:

Because of their modular and enclosed structure, compact substations can be relocated when project needs change. This mobility allows flexible use at construction sites, temporary power systems, or remote installations. Conversely, conventional substations are permanent structures; once installed, relocation is nearly impossible without full reconstruction.

Voltage Range and Capacity:

Compact substations are typically applied in medium-voltage networks, up to around 36 kV, serving local distribution systems and renewable connections. Conventional substations can handle much higher voltages, up to 400 kV or even more, making them suitable for utility transmission networks and heavy industrial power.

Cooling and Safety Systems:

Most compact substations use sealed dry-type or oil-immersed transformers within an enclosed cabinet. This reduces environmental exposure and improves personnel safety. Conventional electrical substations often rely on open-air cooling or oil-pit systems, which require greater clearance and external protection fencing.

Typical Usage Scenarios:

A compact substation is perfect for space-limited areas like new residential zones, airports, hotels, and solar or wind farms. Meanwhile, conventional substations are used in large-scale grid systems, high-capacity factories, and areas that demand long-term, high-voltage operation. Each serves distinct roles in modern power substation infrastructure.

Maintenance Requirements:

Thanks to its enclosed and factory-tested design, a compact substation needs minimal maintenance during its service life. Periodic inspections and filter replacements are usually enough. On the other hand, a conventional substation offers easier individual access to each device but demands more frequent inspection and higher operational manpower.

9 Scalability and Cost Efficiency:

Compact substations are modular and cost-efficient for small to mid-scale projects, significantly reducing civil engineering expenses. However, their scalability is limited once installed. Conventional substations, while more expensive to build, allow easy expansion, additional transformers, or feeders, making them more economical for long-term, high-capacity operations.

How to choose the right one:

When selecting between compact and conventional substations, consider:

• Available space: Compact substations require minimal area.
• Project timeline: Choose compact for fast installation.
• Voltage level: Compact fits ≤ 36 kV systems; conventional suits > 36 kV.
• Mobility: Compact units are relocatable.
• Future expansion: Conventional substations allow more scalability.

For smart cities, modular EPC projects, and renewable energy grids, compact substations deliver optimal value.

Conclusion:

Both compact and conventional substations play indispensable roles in modern electrical networks. Conventional substations remain vital for large-scale, high-voltage transmission and projects that demand long-term expansion. However, as cities grow denser and renewable energy becomes a central part of global power strategies, compact substations represent the next generation of efficient and intelligent distribution systems. With their integrated structure, minimal installation time, small footprint, and reliable protection performance, compact substations provide an ideal balance between safety, efficiency, and aesthetics.

Byyou’s ZGS-12/0.4 Compact Substation embodies these advantages through advanced design, strict manufacturing standards, and durable performance under various environmental conditions. It delivers stable power distribution with low noise, low energy loss, and easy maintenance, making it suitable for residential communities, industrial zones, and renewable energy projects alike. Byyou continues to focus on innovation, quality, and customer satisfaction, offering tailored compact substation solutions to meet the evolving needs of the global power industry.
